1. Product Introduction

Round SmCo magnets include solid discs, solid cylinders, hollow rings and countersunk hole discs. As standard high-temperature permanent magnetic components, their smooth round shape perfectly matches circular mounting grooves. Featuring high temperature resistance and natural corrosion resistance, SmCo magnets require no electroplating anti-rust treatment. With extremely low magnetic attenuation under high temperatures, they are widely used in high-temperature precision instruments and sensing equipment.

For detailed grade parameters, please refer to our SmCo Magnet Performance Chart.

2. Product Classification

Solid Thin Disc SmCo MagnetsMainly applied to miniature high-temperature sensors and high-temperature speaker components.

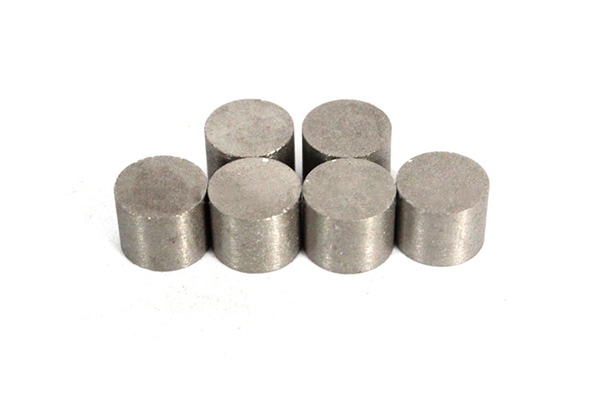

Solid Cylindrical SmCo MagnetsBuilt-in magnetic steels for positioning pins and high-temperature detection probes.

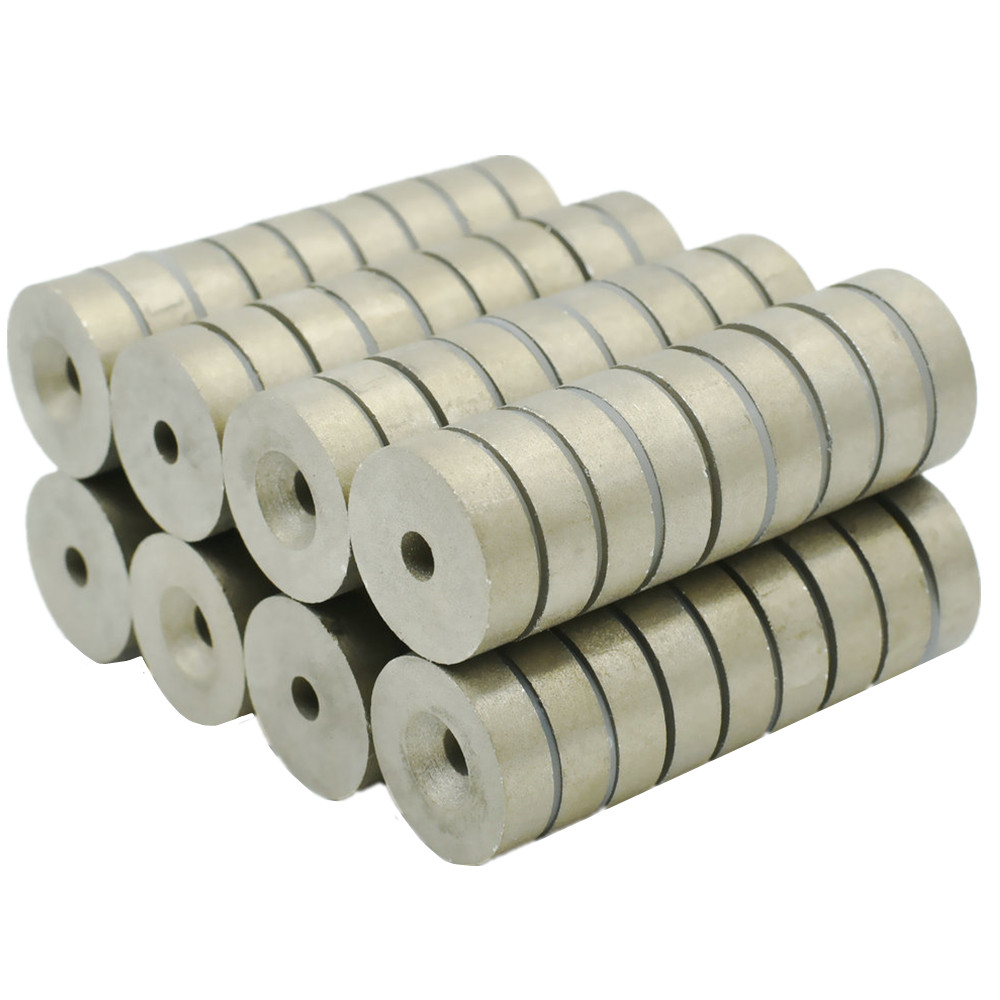

Through-hole Ring SmCo MagnetsSuitable for high-temperature rotating shafts, encoders and small high-temperature motors.

Countersunk Hole Round SmCo MagnetsUsed for tooling positioning and screw fixing of high-temperature molds.

Micro Mini Round SmCo MagnetsApplied in small aerospace precision components.

3. Magnetic Grades & Performance

SmCo5 (1:5 Series): Max operating temperature of 250℃, suitable for medium and small equipment working under slightly high temperature conditions.

Sm₂Co₁₇ (2:17 Series): Operating temperature of 300–350℃, ideal for ultra-high-temperature working scenarios in petroleum and aerospace industries.

SmCo magnets feature inherent anti-rust performance and excellent magnetic stability under alternating cold and hot temperature differences.

4. Core Advantages

Ultra-high Temperature ResistanceEffectively avoid irreversible demagnetization in long-term high-temperature environments.

Natural Corrosion & Oxidation ResistanceResistant to oxidation and oil-gas corrosion, no electroplating processing required.

Perfect Assembly FitStandard round structure fits circular grooves and sleeves seamlessly without assembly gaps.

Integrated Mechanical ProcessingSupport one-piece machining of countersunk holes and through holes. Screw locking ensures firm installation without glue failure under high temperature.

Miniature Size CustomizationAvailable in micro specifications to adapt to the narrow internal space of high-temperature equipment.

5. Application Scenarios

Widely used in high-temperature Hall sensors, petroleum downhole detection instruments, aerospace precision components, vacuum equipment, high-temperature micro motors, microwave instruments and high-temperature magnetic positioning tooling.

6. Usage Precautions

SmCo material is brittle. Violent knocking is prohibited during assembly. Edge chamfering is recommended to prevent cracking and chipping.

Select 2:17 series round SmCo magnets for equipment operating continuously above 200℃.

Choose countersunk hole types for mechanical fixing and through-hole ring types for shaft penetration assembly.

7. Our Service

We support customized diameter, thickness and countersunk hole sizes with rapid prototyping services. Our professional engineers recommend the most suitable SmCo grades according to your actual working conditions and equipment requirements.
