Special-shaped sintered NdFeB magnets are non-standard rare earth permanent magnets different from standard blocks and discs. We adopt composite precision processing including CNC grinding, wire cutting, drilling and slotting. We can customize any special contours, countersunk holes, steps and curved surfaces according to the installation space of equipment.

They perfectly fit narrow and irregular assembly positions, optimize magnetic field distribution and eliminate the need for adapter brackets. Widely applied in precision equipment, new energy motors, automated tooling and other fields. One-stop customization is available for all sizes, various magnetic grades and multiple surface coatings.

Magnet Grades: Please refer to our >>> NdFeB Magnet Performance Chart<<

I. Main Types of Special-shaped Magnets

1. Arc-shaped Special Magnets for Motors (Motor Arc Magnets)

Arc, sector and chamfered arc NdFeB magnets fit closely to motor rotors, reduce cogging torque and improve motor efficiency. They are the core magnetic steel for servo motors, power tools and new energy vehicle drive motors.

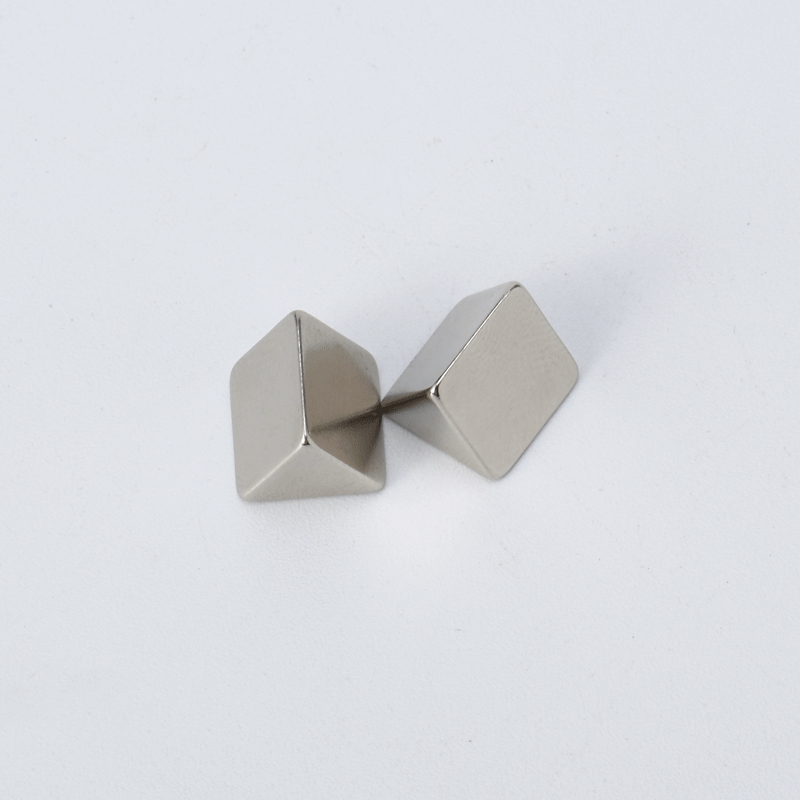

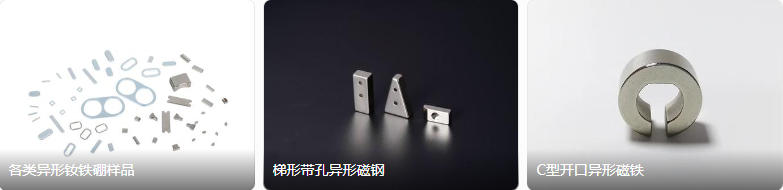

2. Bent Polygonal Special Magnets

L-shape, T-shape, trapezoid, triangle, hexagon, U-type / C-type open magnets, commonly used for equipment positioning, magnetic jigs and sensor induction components.

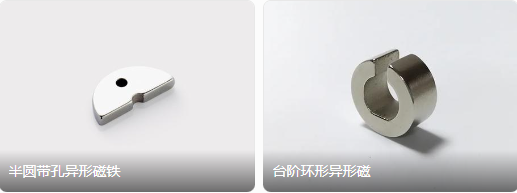

3. Composite Special-Shaped Magnets with Holes

Integrated special-shaped NdFeB magnets with single/double countersunk holes, through holes, step holes and eccentric holes. They allow screw locking installation with fully flat and bump-free surfaces, specially used for tooling and mold fixing.

4. Ultra-thin / Step / Slotted Special-Shaped Magnets

Ultra-thin shaped magnets, step magnets, single-sided / double-sided slotted and notched magnets. Suitable for consumer electronics, wireless charging modules and internal magnetic structures of foldable screens.

5. Custom Irregular Special-Shaped Magnets

Non-standard shapes including heart shape, comma shape, cone shape, oval shape and conjoined double magnets. Custom mold production is supported according to customer drawings or physical samples.

Core Product Advantages

Full-size Non-standard CustomizationUnlimited customization in shape, thickness, hole diameter and radian. Fast prototyping and mold opening based on drawings or samples. We accept both small-batch trial orders and mass production.

Multiple High-performance Magnetic GradesRegular high-energy grades from N35 to N52; high-temperature resistant series including M, H, SH, UH and EH grades, maintaining stable magnetism without demagnetization under 80℃ to 220℃ high-temperature working conditions.

High-precision MachiningIntegrated processing by CNC grinding and wire cutting. Dimensional tolerance is stably controlled within ±0.02mm for seamless assembly.

Multi-layer Anti-corrosion CoatingsVarious environmentally friendly coatings including Ni-Cu-Ni plating, black epoxy coating and zinc plating, providing excellent moisture-proof and rust-proof performance for humid and corrosive industrial environments.

Flexible Magnetization SolutionsSupport axial magnetization, radial magnetization and multi-pole directional magnetization. N/S pole marking is available for easy assembly and pole identification.

Integrated Molding Without Auxiliary PartsThe integrated special-shaped structure eliminates the need for additional adapter brackets, simplifying equipment structure and reducing assembly costs.

Processing Technology Flow

NdFeB blank sintering → CNC arc grinding / wire cutting contour forming → precision drilling, countersinking, slotting and chamfering → full dimensional inspection and screening → electroplating anti-corrosion treatment → directional magnetization → pole marking → packaging and delivery. The whole process is independently processed with strict quality control.

Application Industries & Scenarios

New Energy Motors: Drive motors for electric vehicles, servo motors, fan motors, magnetic steels for power tools.

Industrial Automation: Tooling fixtures, magnetic positioning jigs, automated sensors, mold magnetic fixing.

Precision Electronics: TWS earphones, wireless chargers, foldable screen phones, miniature vibration motors.

Medical Equipment: Small special-shaped magnetic components for medical testing equipment and physical therapy instruments.

Hardware & Building Materials: Magnetic door stops, magnetic tool racks, advertising display stands, salvage magnetic accessories.

Instruments & Meters: Encoders, magnetic sensors, positioning magnetic steels for laser equipment.

Precautions for Selection & Use

NdFeB material is brittle. It is recommended to add chamfers for sharp-angle and thin-wall special-shaped parts to avoid edge chipping and damage during processing.

Do not over-tighten the screws of holed special-shaped magnets to prevent cracking caused by excessive extrusion.

Select H-grade or higher high-temperature resistant grades for high-temperature equipment to avoid irreversible demagnetization.

Special-shaped magnets require complex processing procedures, resulting in longer lead time and higher unit price than standard block magnets. Custom dedicated molds can be opened for mass orders to reduce costs.

Our Advantages

We are equipped with a full set of precision processing equipment for special-shaped magnets. Our professional engineers provide free magnetic circuit optimization and size selection solutions, with fast drawing quotation and sample delivery. We support OEM/ODM one-stop customized services. Welcome to consult with your drawings, samples or dimensional parameters for special-shaped NdFeB magnet customization.
